RGB Color Constants, VBA RGB 색상 예약어 목록

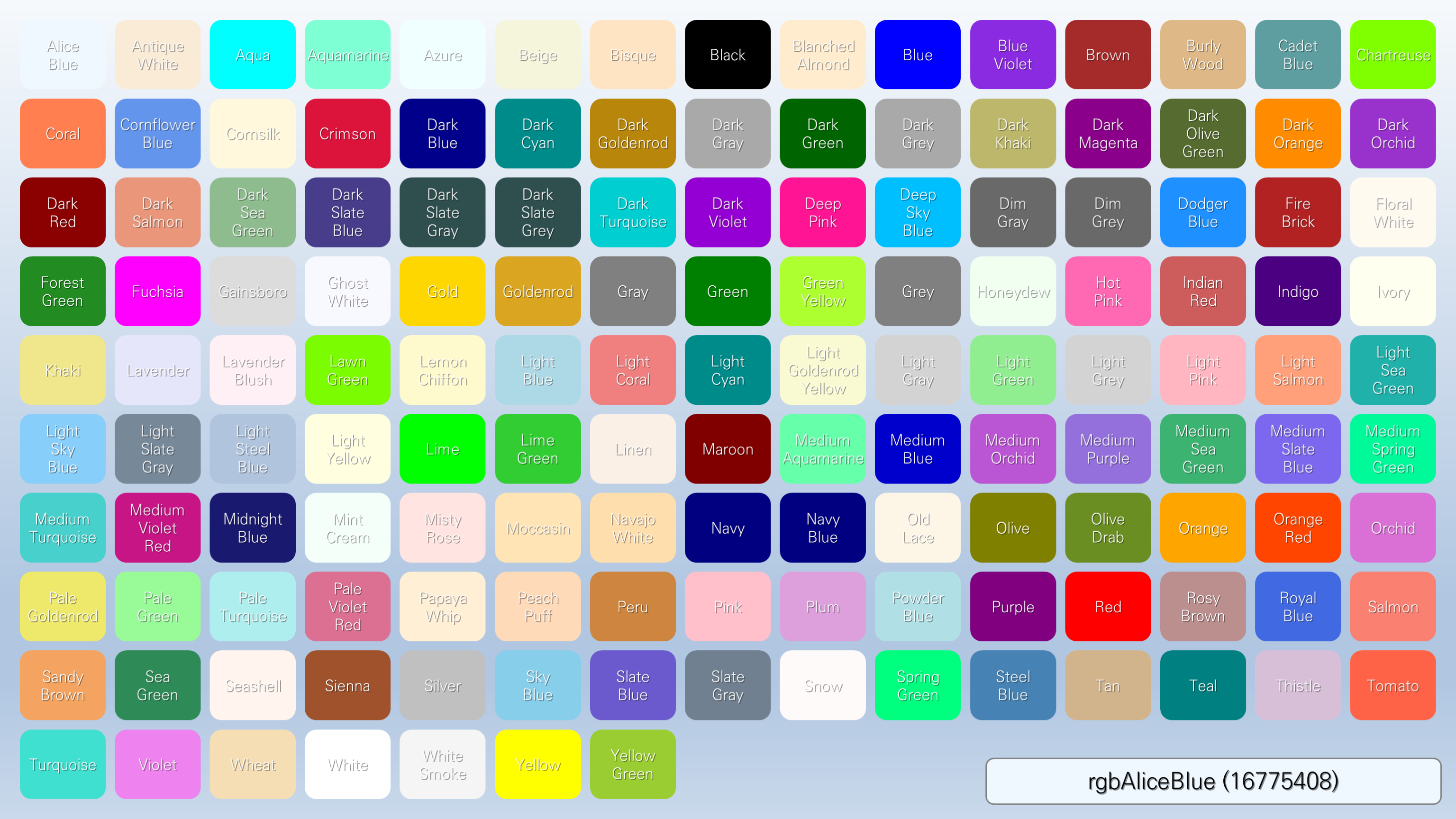

ABC순서 RGB Color Constants

PowerPoint VBA에서 색상은 RGB(Red, Green, Blue농도)로 나타내지만

미리 정해진 색상들은 위와 같이 별도의 이름을 가지고 있습니다.

예를 들어 RGB(127,127,127) 은 회색인데 rgbGray 로 나타낼 수도 있습니다.

색상숫자는 외우기 어렵기 때문에 색상이름을 외워두면 간단히 써먹을 수 있습니다.

https://docs.microsoft.com/en-us/office/vba/api/excel.xlrgbcolor

이 색상이름을 미리 볼 수 있도록 만들어봤습니다.

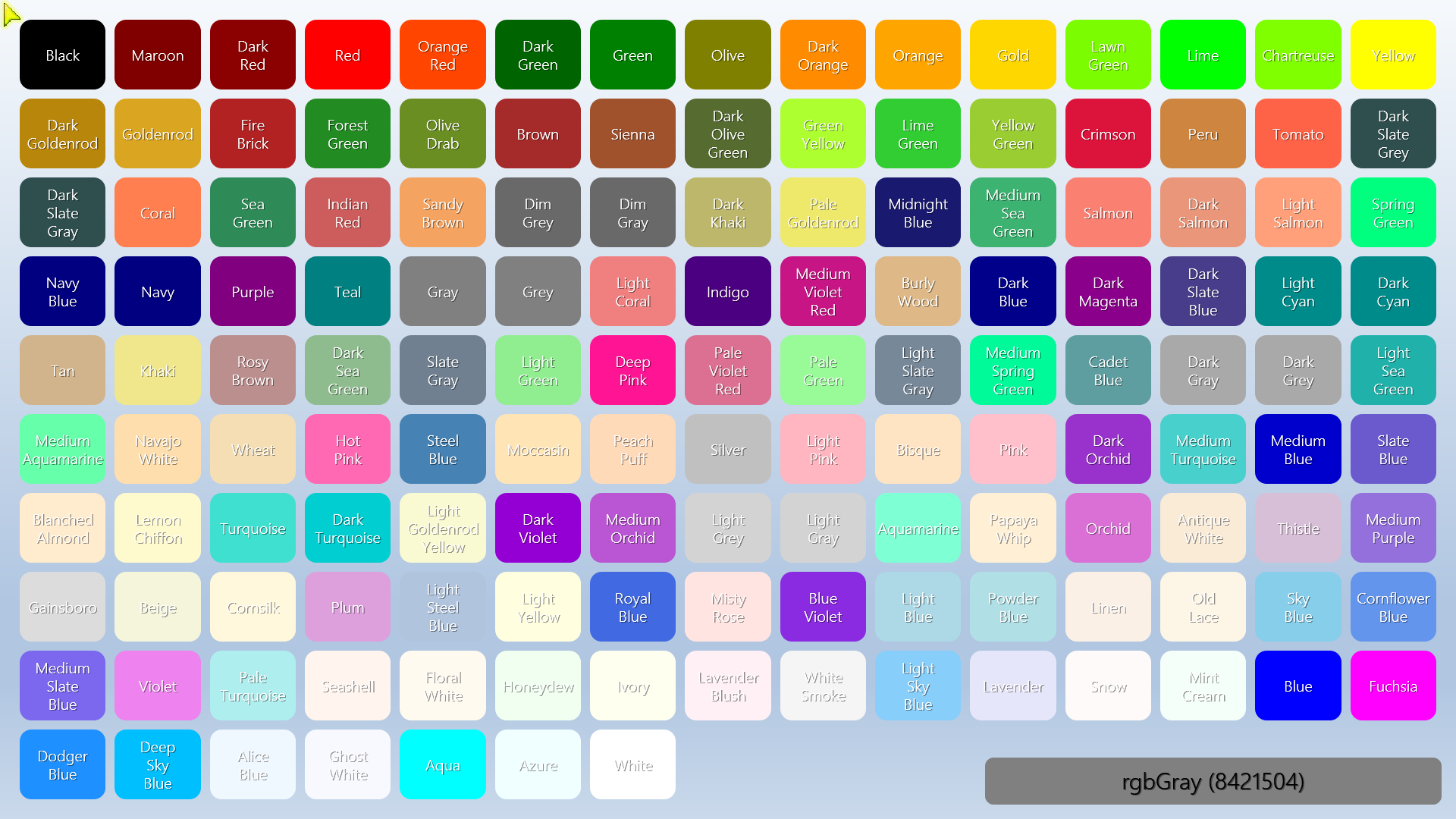

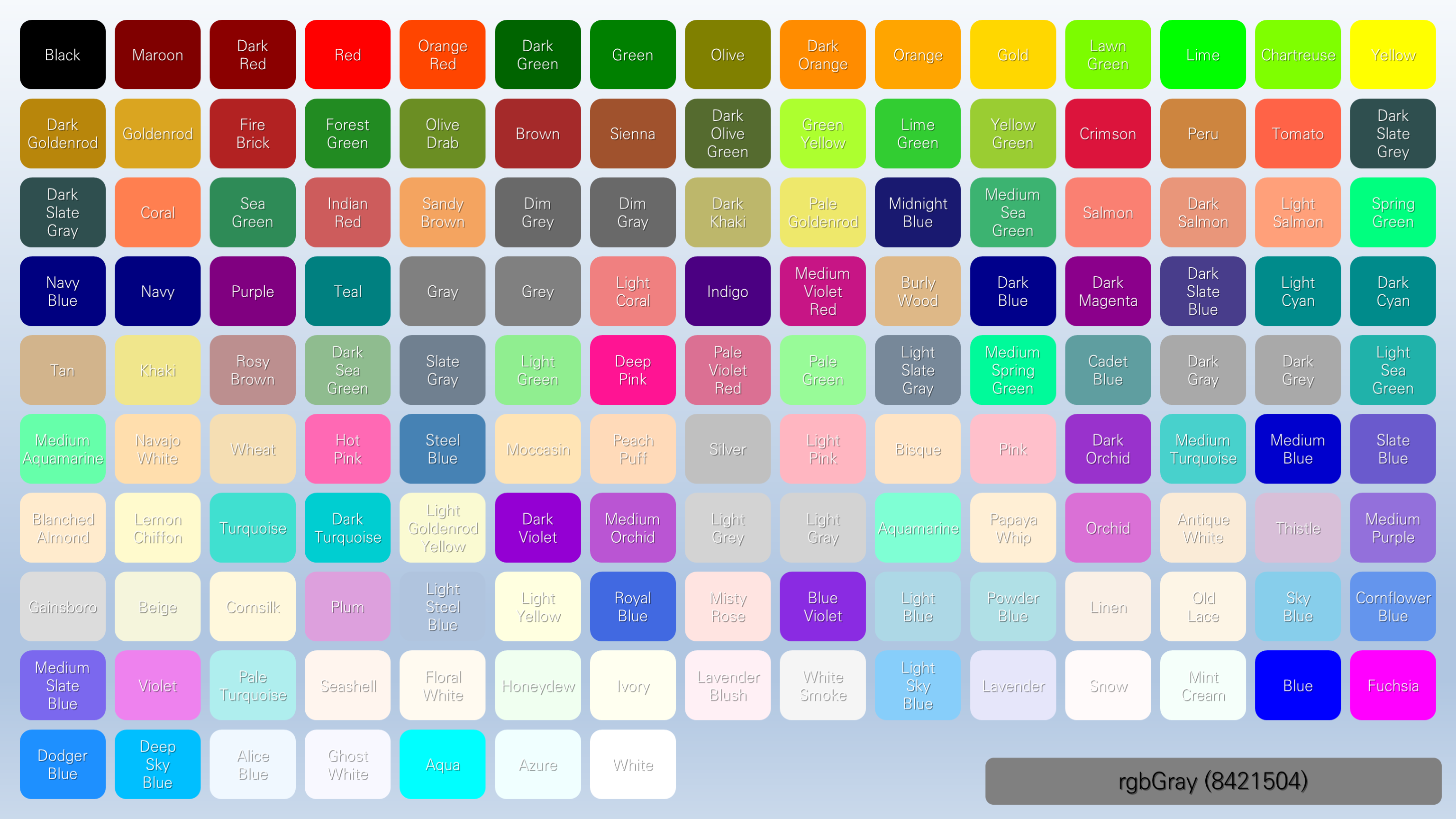

RGB값 순서 RGB Color Constants

You can preview, on a single page, all the RGB color constants(pre-defined color names) in Excel/PowerPoint VBA.

위 슬라이드를 만들어 내는 VBA코드입니다.



'Demonstrate/preview all PowerPoint RGB Color Constants available
'by konahn(at)naver.com
Option Explicit
Option Base 0

Public myColor As Variant
Public myColorName As Variant
Public Const Sorting As Boolean = False

Function InitColor()

    myColor = Array(rgbAliceBlue, rgbAntiqueWhite, rgbAqua, rgbAquamarine, rgbAzure, rgbBeige, rgbBisque, rgbBlack, rgbBlanchedAlmond, rgbBlue, _
rgbBlueViolet, rgbBrown, rgbBurlyWood, rgbCadetBlue, rgbChartreuse, rgbCoral, rgbCornflowerBlue, rgbCornsilk, rgbCrimson, rgbDarkBlue, _
rgbDarkCyan, rgbDarkGoldenrod, rgbDarkGray, rgbDarkGreen, rgbDarkGrey, rgbDarkKhaki, rgbDarkMagenta, rgbDarkOliveGreen, rgbDarkOrange, _
rgbDarkOrchid, rgbDarkRed, rgbDarkSalmon, rgbDarkSeaGreen, rgbDarkSlateBlue, rgbDarkSlateGray, rgbDarkSlateGrey, rgbDarkTurquoise, _
rgbDarkViolet, rgbDeepPink, rgbDeepSkyBlue, rgbDimGray, rgbDimGrey, rgbDodgerBlue, rgbFireBrick, rgbFloralWhite, rgbForestGreen, _
rgbFuchsia, rgbGainsboro, rgbGhostWhite, rgbGold, rgbGoldenrod, rgbGray, rgbGreen, rgbGreenYellow, rgbGrey, rgbHoneydew, rgbHotPink, _
rgbIndianRed, rgbIndigo, rgbIvory, rgbKhaki, rgbLavender, rgbLavenderBlush, rgbLawnGreen, rgbLemonChiffon, rgbLightBlue, rgbLightCoral, _
rgbLightCyan, rgbLightGoldenrodYellow, rgbLightGray, rgbLightGreen, rgbLightGrey, rgbLightPink, rgbLightSalmon, rgbLightSeaGreen, _
rgbLightSkyBlue, rgbLightSlateGray, rgbLightSteelBlue, rgbLightYellow, rgbLime, rgbLimeGreen, rgbLinen, rgbMaroon, rgbMediumAquamarine, _
rgbMediumBlue, rgbMediumOrchid, rgbMediumPurple, rgbMediumSeaGreen, rgbMediumSlateBlue, rgbMediumSpringGreen, rgbMediumTurquoise, _
rgbMediumVioletRed, rgbMidnightBlue, rgbMintCream, rgbMistyRose, rgbMoccasin, rgbNavajoWhite, rgbNavy, rgbNavyBlue, rgbOldLace, _
rgbOlive, rgbOliveDrab, rgbOrange, rgbOrangeRed, rgbOrchid, rgbPaleGoldenrod, rgbPaleGreen, rgbPaleTurquoise, rgbPaleVioletRed, _
rgbPapayaWhip, rgbPeachPuff, rgbPeru, rgbPink, rgbPlum, rgbPowderBlue, rgbPurple, rgbRed, rgbRosyBrown, rgbRoyalBlue, rgbSalmon, _
rgbSandyBrown, rgbSeaGreen, rgbSeashell, rgbSienna, rgbSilver, rgbSkyBlue, rgbSlateBlue, rgbSlateGray, rgbSnow, rgbSpringGreen, _
rgbSteelBlue, rgbTan, rgbTeal, rgbThistle, rgbTomato, rgbTurquoise, rgbViolet, rgbWheat, rgbWhite, rgbWhiteSmoke, rgbYellow, _
rgbYellowGreen)

End Function

Function InitColorName()

    myColorName = Array("rgbAliceBlue", "rgbAntiqueWhite", "rgbAqua", "rgbAquamarine", "rgbAzure", "rgbBeige", "rgbBisque", "rgbBlack", "rgbBlanchedAlmond", "rgbBlue", _
"rgbBlueViolet", "rgbBrown", "rgbBurlyWood", "rgbCadetBlue", "rgbChartreuse", "rgbCoral", "rgbCornflowerBlue", "rgbCornsilk", "rgbCrimson", "rgbDarkBlue", _
"rgbDarkCyan", "rgbDarkGoldenrod", "rgbDarkGray", "rgbDarkGreen", "rgbDarkGrey", "rgbDarkKhaki", "rgbDarkMagenta", "rgbDarkOliveGreen", "rgbDarkOrange", _
"rgbDarkOrchid", "rgbDarkRed", "rgbDarkSalmon", "rgbDarkSeaGreen", "rgbDarkSlateBlue", "rgbDarkSlateGray", "rgbDarkSlateGrey", "rgbDarkTurquoise", _
"rgbDarkViolet", "rgbDeepPink", "rgbDeepSkyBlue", "rgbDimGray", "rgbDimGrey", "rgbDodgerBlue", "rgbFireBrick", "rgbFloralWhite", "rgbForestGreen", _
"rgbFuchsia", "rgbGainsboro", "rgbGhostWhite", "rgbGold", "rgbGoldenrod", "rgbGray", "rgbGreen", "rgbGreenYellow", "rgbGrey", "rgbHoneydew", "rgbHotPink", _
"rgbIndianRed", "rgbIndigo", "rgbIvory", "rgbKhaki", "rgbLavender", "rgbLavenderBlush", "rgbLawnGreen", "rgbLemonChiffon", "rgbLightBlue", "rgbLightCoral", _
"rgbLightCyan", "rgbLightGoldenrodYellow", "rgbLightGray", "rgbLightGreen", "rgbLightGrey", "rgbLightPink", "rgbLightSalmon", "rgbLightSeaGreen", _
"rgbLightSkyBlue", "rgbLightSlateGray", "rgbLightSteelBlue", "rgbLightYellow", "rgbLime", "rgbLimeGreen", "rgbLinen", "rgbMaroon", "rgbMediumAquamarine", _
"rgbMediumBlue", "rgbMediumOrchid", "rgbMediumPurple", "rgbMediumSeaGreen", "rgbMediumSlateBlue", "rgbMediumSpringGreen", "rgbMediumTurquoise", _
"rgbMediumVioletRed", "rgbMidnightBlue", "rgbMintCream", "rgbMistyRose", "rgbMoccasin", "rgbNavajoWhite", "rgbNavy", "rgbNavyBlue", "rgbOldLace", _
"rgbOlive", "rgbOliveDrab", "rgbOrange", "rgbOrangeRed", "rgbOrchid", "rgbPaleGoldenrod", "rgbPaleGreen", "rgbPaleTurquoise", "rgbPaleVioletRed", _
"rgbPapayaWhip", "rgbPeachPuff", "rgbPeru", "rgbPink", "rgbPlum", "rgbPowderBlue", "rgbPurple", "rgbRed", "rgbRosyBrown", "rgbRoyalBlue", "rgbSalmon", _
"rgbSandyBrown", "rgbSeaGreen", "rgbSeashell", "rgbSienna", "rgbSilver", "rgbSkyBlue", "rgbSlateBlue", "rgbSlateGray", "rgbSnow", "rgbSpringGreen", _
"rgbSteelBlue", "rgbTan", "rgbTeal", "rgbThistle", "rgbTomato", "rgbTurquoise", "rgbViolet", "rgbWheat", "rgbWhite", "rgbWhiteSmoke", "rgbYellow", _
"rgbYellowGreen")

End Function

Sub Main()    'Main sub routine

    Dim sld As Slide
    Dim myLayout As CustomLayout
    Dim shp As Shape, shpGo As Shape
    Dim eft As Effect
    Dim i As Integer, s As Integer
    Dim SW As Single, SH As Single
    Dim x!, y!, w!, h!, m1!, m2!, cols As Integer

    'EraseSlidesExcept1st

    InitColor
    InitColorName

    If Sorting Then
       Quicksort2 myColor, myColorName, LBound(myColor), UBound(myColor)
    End If

    Randomize

    With ActivePresentation.PageSetup
        SW = .SlideWidth
        SH = .SlideHeight
    End With

    'Set myLayout = ActivePresentation.Slides(1).CustomLayout
    Set sld = ActivePresentation.Slides.add(2, ppLayoutBlank)

    cols = 15   '컬럼수
    m1 = 3      '네모 사이 여백
    m2 = 10     '슬라이드 여백
    w = (SW - m2 * 2) / cols - m1 * 2
    h = (SH - m2 * 2) / Int((UBound(myColor) + cols - 1) / cols) - m1 * 2

    For i = LBound(myColor) To UBound(myColor)
        x = m2 + (i Mod cols) * (w + m1 * 2) + m1
        y = m2 + Int(i / cols) * (h + m1 * 2) + m1
        Set shp = sld.Shapes.AddShape(msoShapeRoundedRectangle, x, y, w, h)
        shp.Fill.ForeColor.RGB = myColor(i)
        shp.Line.Visible = msoFalse
        shp.TextFrame.TextRange.Font.Size = 10
        shp.TextFrame.TextRange.Font.Color.RGB = rgbWhite
        shp.TextFrame.TextRange.Font.Shadow = msoTrue
        shp.TextFrame.TextRange.Text = Mid(myColorName(i), 4)
        addlines shp.TextFrame.TextRange
        shp.TextFrame.WordWrap = msoFalse
        shp.Name = "shp" & i
        shp.ActionSettings(ppMouseOver).Action = ppActionRunMacro
        shp.ActionSettings(ppMouseOver).Run = "AddMyColor"
        shp.ActionSettings(ppMouseClick).Action = ppActionRunMacro
        shp.ActionSettings(ppMouseClick).Run = "CopyColorText1"
    Next i

    'the name of the color over which the mouse is
    Set shp = sld.Shapes.AddShape(msoShapeRoundedRectangle, SW - 300 - m2, SH - 30 - m2, 300, 30)
    shp.Fill.Visible = msoTrue
    shp.Line.Weight = 1
    shp.Line.ForeColor.RGB = rgbGray
    shp.Name = "Color Name"
    shp.TextFrame.TextRange.Font.Color.RGB = rgbBlack
    shp.TextFrame.TextRange.Font.Shadow = msoTrue
    shp.TextFrame.TextRange.Font.Size = 15
    shp.TextFrame.TextRange.Text = "Move the mouse over the color to see"
    shp.TextFrame.WordWrap = msoFalse

End Sub

Function addlines(ByRef tr As TextRange)

    Dim i As Integer
    Dim c As String
    For i = Len(tr) To 1 Step -1
        c = tr.Characters(i, 1).Text
        If UCase(c) = c And i > 1 Then
            tr.Characters(i, 1).InsertBefore (vbCr)
        End If
    Next i

End Function

Function AddMyColor(shp As Shape)
    Dim i As Integer
    Dim sld As Slide
    Dim idx As Integer
    Dim eft As Effect

    If IsEmpty(myColor) Then InitColor
    If IsEmpty(myColorName) Then InitColorName

    Set sld = ActivePresentation.Slides(2)
    idx = Mid(shp.Name, 4)
    'change color name
    sld.Shapes("Color Name").TextFrame.TextRange.Text = myColorName(idx) & " (" & myColor(idx) & ")"

    sld.Shapes("Color Name").Fill.ForeColor.RGB = myColor(idx)

End Function

Function CopyColorText1(shp As Shape)
    Dim idx As Integer

    If IsEmpty(myColor) Then InitColor
    If IsEmpty(myColorName) Then InitColorName

    idx = Mid(shp.Name, 4)  'ex) "shp120" -> 120

    'to use this, add a reference to 'MSForm 2.0 Library' by clicking [Tools-Reference] in VBE
    Dim DataObj As New MSForms.DataObject
    'Copy the effect name into Clipboard

    DataObj.SetText myColorName(idx)
    DataObj.PutInClipboard
    MsgBox myColorName(idx) & " is copied into Clipboard"
    Set DataObj = Nothing

End Function

Function CopyColorText(shp As Shape)
    'to use this, add a reference to 'MSForm 2.0 Library' by clicking [Tools-Reference] in VBE
    Dim DataObj As New MSForms.DataObject
    'Copy the effect name into Clipboard
    DataObj.SetText Left(shp.TextFrame.TextRange.Text, InStr(1, shp.TextFrame.TextRange.Text, "(") - 1)
    DataObj.PutInClipboard
    MsgBox shp.TextFrame.TextRange.Text & " is copied into Clipboard"
    Set DataObj = Nothing

End Function


'erase all slides from #2
Function EraseSlidesExcept1st()
    Dim i As Integer
    For i = ActivePresentation.Slides.Count To 2 Step -1
        ActivePresentation.Slides(i).Delete
    Next i
End Function

'remove all animations including triggers
Function Zap_Animations()
    Dim oeff As Effect
    Dim i As Integer
    Dim t As Integer
    Dim osld As Slide

    For Each osld In ActivePresentation.Slides
        'Remove normal animations
        For i = osld.TimeLine.MainSequence.Count To 1 Step -1
            osld.TimeLine.MainSequence(i).Delete
        Next i
        'Remove triggers
        For i = osld.TimeLine.InteractiveSequences.Count To 1 Step -1
            For t = osld.TimeLine.InteractiveSequences(i).Count To 1 Step -1
            osld.TimeLine.InteractiveSequences(i).Item(t).Delete
            Next t
        Next i
    Next osld
End Function

'original version: https://wellsr.com/vba/2018/excel/vba-quicksort-macro-to-sort-arrays-fast/
Function Quicksort2(vArray As Variant, vArray2 As Variant, arrLbound As Long, arrUbound As Long)
'Sorts a one-dimensional VBA array from smallest to largest
'using a very fast quicksort algorithm variant.
Dim pivotVal As Variant
Dim vSwap    As Variant
Dim tmpLow   As Long
Dim tmpHi    As Long

tmpLow = arrLbound
tmpHi = arrUbound
pivotVal = vArray((arrLbound + arrUbound) \ 2)

While (tmpLow <= tmpHi) 'divide
   While (vArray(tmpLow) < pivotVal And tmpLow < arrUbound)
      tmpLow = tmpLow + 1
   Wend

   While (pivotVal < vArray(tmpHi) And tmpHi > arrLbound)
      tmpHi = tmpHi - 1
   Wend

   If (tmpLow <= tmpHi) Then
      vSwap = vArray(tmpLow)
      vArray(tmpLow) = vArray(tmpHi)
      vArray(tmpHi) = vSwap
      '//swap the second array
      vSwap = vArray2(tmpLow)
      vArray2(tmpLow) = vArray2(tmpHi)
      vArray2(tmpHi) = vSwap
      '//swap
      tmpLow = tmpLow + 1
      tmpHi = tmpHi - 1
   End If
Wend

  If (arrLbound < tmpHi) Then Quicksort2 vArray, vArray2, arrLbound, tmpHi 'conquer
  If (tmpLow < arrUbound) Then Quicksort2 vArray, vArray2, tmpLow, arrUbound 'conquer
End Function



아래 첨부파일을 매크로 허용해서 열고 슬라이드쇼를 실행하면

위 처럼 색상 미리 보기를 할 수 있고

클릭해서 클립보드에 색상 이름을 복사할 수도 있습니다.



4:3버전(구버전)

RGBColors1.pptm

0.40MB

16:9버전(신버전)

RGBColors2.pptm

0.42MB
